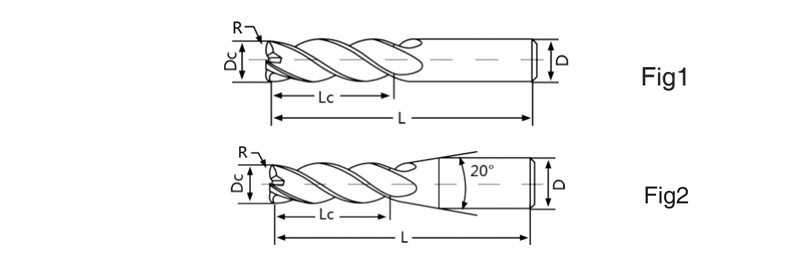

| 型號 | 基本尺寸 | 刃數 | 圖號 | 庫存 | ||||
| DC | R | LC | D | L | ||||
| HT400 D1R0.2*3*50L*D4*4T | 1 | 0.2 | 3 | 4 | 50 | 4 | Fig2 | ● |
| HT400 D1.5R0.2*4*4T*50L*D4*4T | 1.5 | 0.2 | 4 | 4 | 50 | 4 | Fig2 | ● |
| HT400 D2R0.2*6*50L*D4*4T | 2 | 0.2 | 6 | 4 | 50 | 4 | Fig2 | ● |
| HT400 D3R0.2*8*50L*D4*4T | 3 | 0.2 | 8 | 4 | 50 | 4 | Fig2 | ● |
| HT400 D3R0.5*8*50L*D4*4T | 3 | 0.5 | 8 | 4 | 50 | 4 | Fig2 | ● |
| HT400 D4R0.2*10*50L*D4*4T | 4 | 0.2 | 10 | 4 | 50 | 4 | Fig1 | ● |
| HT400 D4R0.3*10*50L*D4*4T | 4 | 0.3 | 10 | 4 | 50 | 4 | Fig1 | ● |
| HT400 D4R0.5*10*50L*D4*4T | 4 | 0.5 | 10 | 4 | 50 | 4 | Fig1 | ● |
| HT400 D4R1*10*50L*D4*4T | 4 | 1 | 10 | 4 | 50 | 4 | Fig1 | ● |
| HT400 D5R0.25*13*50L*D6*4T | 5 | 0.25 | 13 | 6 | 50 | 4 | Fig2 | ● |
| HT400 D5R0.5*13*50L*D6*4T | 5 | 0.5 | 13 | 6 | 50 | 4 | Fig2 | ● |
| HT400 D5R1*13*50L*D6*4T | 5 | 1 | 13 | 6 | 50 | 4 | Fig2 | ● |
| HT400 D6R0.3*16*50L*D6*4T | 6 | 0.3 | 16 | 6 | 50 | 4 | Fig1 | ● |
| HT400 D6R0.5*16*50L*D6*4T | 6 | 0.5 | 16 | 6 | 50 | 4 | Fig1 | ● |
| HT400 D6R1*16*50L*D6*4T | 6 | 1 | 16 | 6 | 50 | 4 | Fig1 | ● |
| HT400 D8R0.5*20*60L*D8*4T | 8 | 0.5 | 20 | 8 | 60 | 4 | Fig1 | ● |
| HT400 D8R1*20*60L*D8*4T | 8 | 1 | 20 | 8 | 60 | 4 | Fig1 | ● |
| HT400 D8R0.5*20*75L*D8*4T | 8 | 0.5 | 20 | 8 | 75 | 4 | Fig1 | ● |
| HT400 D10R0.5*25*75L*D10*4T | 10 | 0.5 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HT400 D10R1*25*75L*D10*4T | 10 | 1 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HT400 D10R2*25*75L*D10*4T | 10 | 2 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HT400 D10R3*25*75L*D10*4T | 10 | 3 | 25 | 10 | 75 | 4 | Fig1 | ● |
| HT400 D12R1*30*75L*D12*4T | 12 | 0.5 | 30 | 12 | 75 | 4 | Fig1 | ● |
| HT400 D12R3*30*75L*D12*4T | 12 | 1 | 30 | 12 | 75 | 4 | Fig1 | ● |
| HT400 D12R0.5*30*75L*D12*4T | 12 | 2 | 30 | 12 | 75 | 4 | Fig1 | ● |
| HT400 D12R2*30*75L*D12*4T | 12 | 3 | 30 | 12 | 75 | 4 | Fig1 | ● |
